Troubleshooting client

Error Codes

We want to reduce technical jargon to passengers onboard the vehicle. We still need some technical info when debugging issues however.

Here is a list of the possible error codes we show in the bottom right corner of the screen:

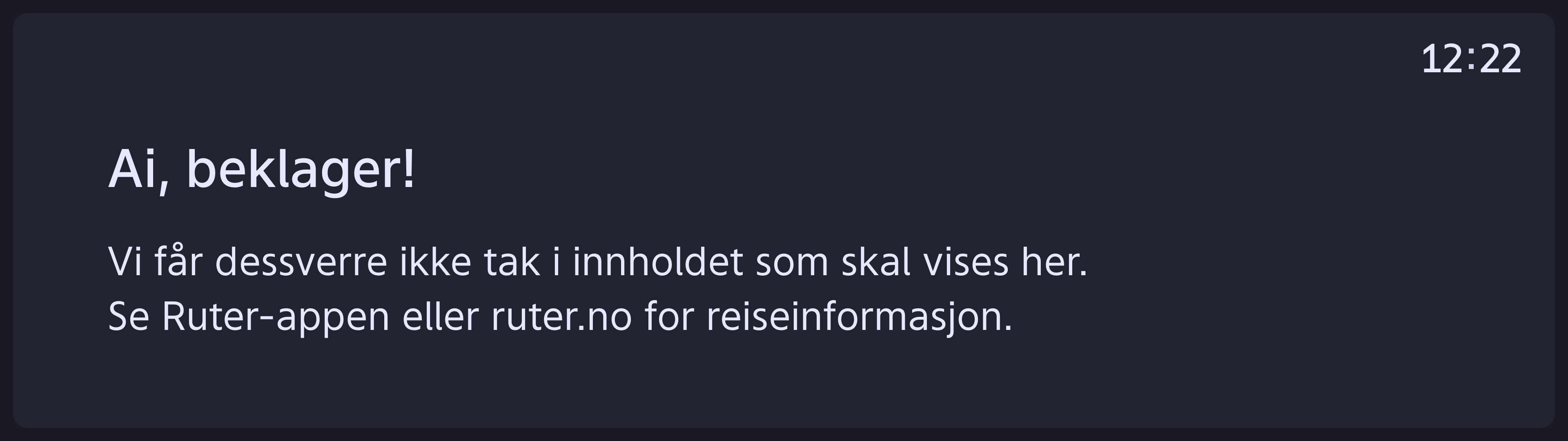

  • NOC – Client lost connection to MQTT broker (ws://mqtt-broker:9883)
  • NOJ – Client has not received any journey message
  • EDO – Client received an external display override message (driver decided to show something else on external displays)

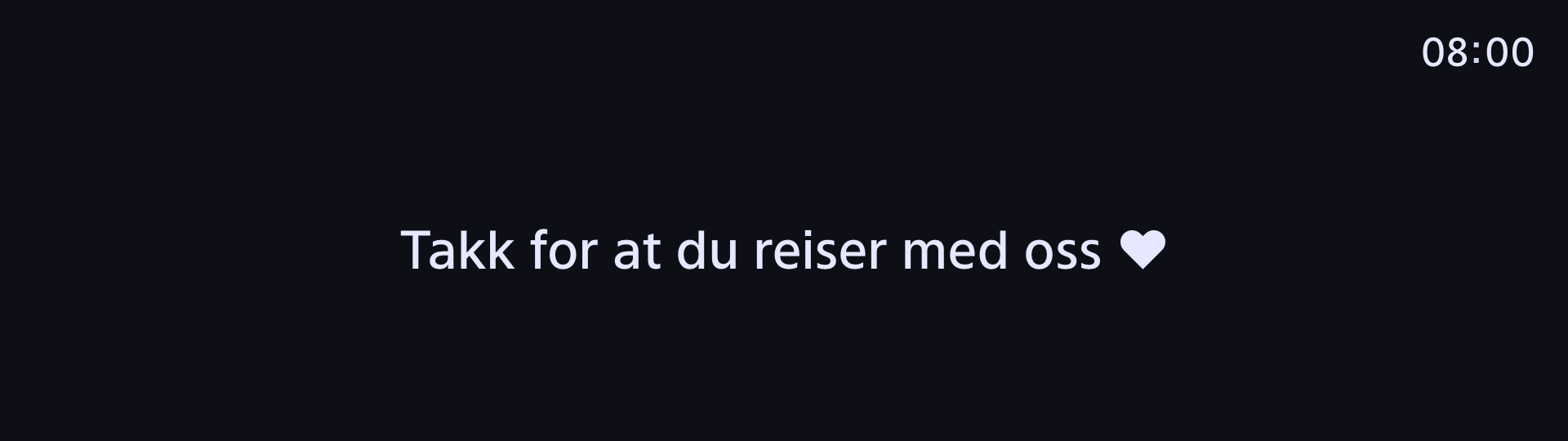

  • DER – Client received a journey message indicating this vehicle should not be transporting passengers (commonly referred to as a deadrun)
  • OFR – The client received an eta-message with information indicating the vehicle has deviated from its planned route.

Locating screen

If the clientId is not sufficient, you could use the more flexible/human readable physicalId to identify each screen amongst several onboard the vehicle.

physicalId can be anything the operator feels helps them to locate the screen.

The application will include both clientId and physicalId in all diagnostic messages. Please refer do MQTT API spec to read more about payload format in diagnostic messages.
